IntelliVue MX500/MX550 ITD Variable Height Wall Mounting for MX550
Mounting solution
IntelliVue MX500/MX550 ITD Variable Height Wall Mounting for MX550
Mounting solution
Learn more about the height adjustable arms available for Philips Intellivue MX500 monitors.
Features

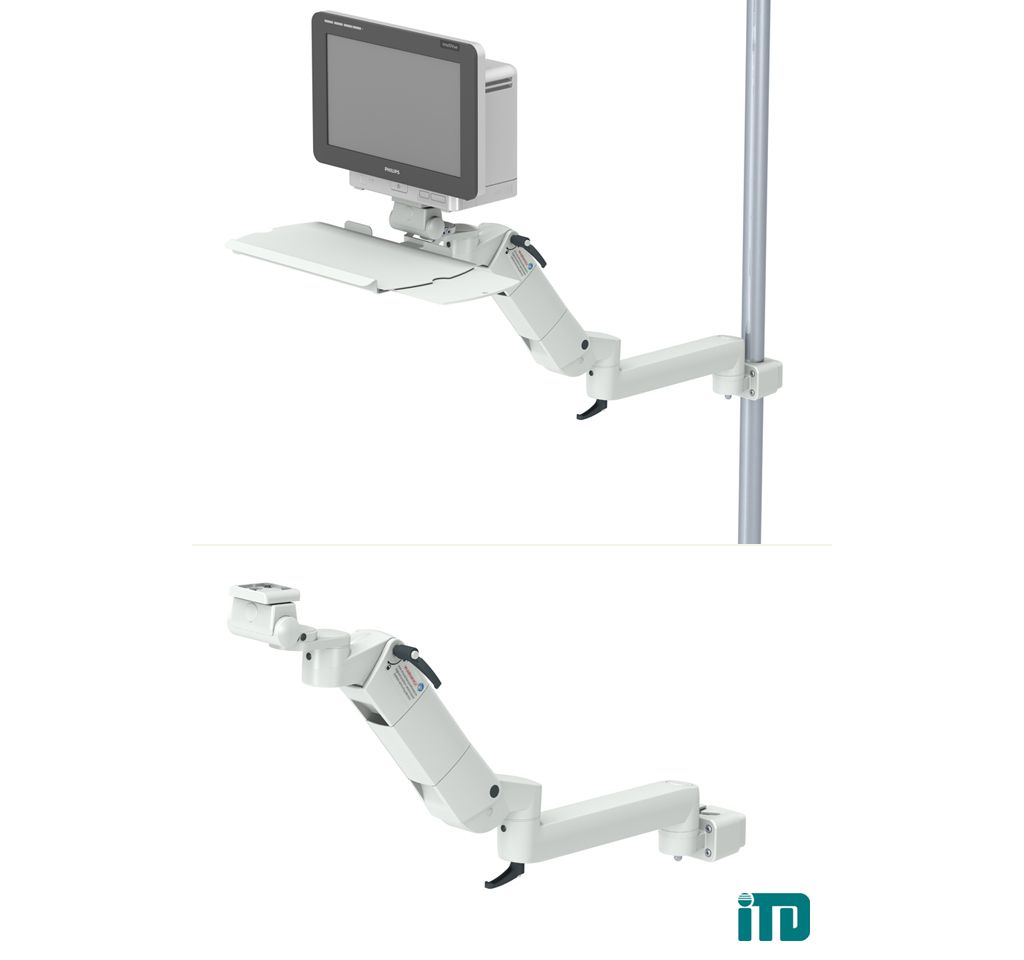

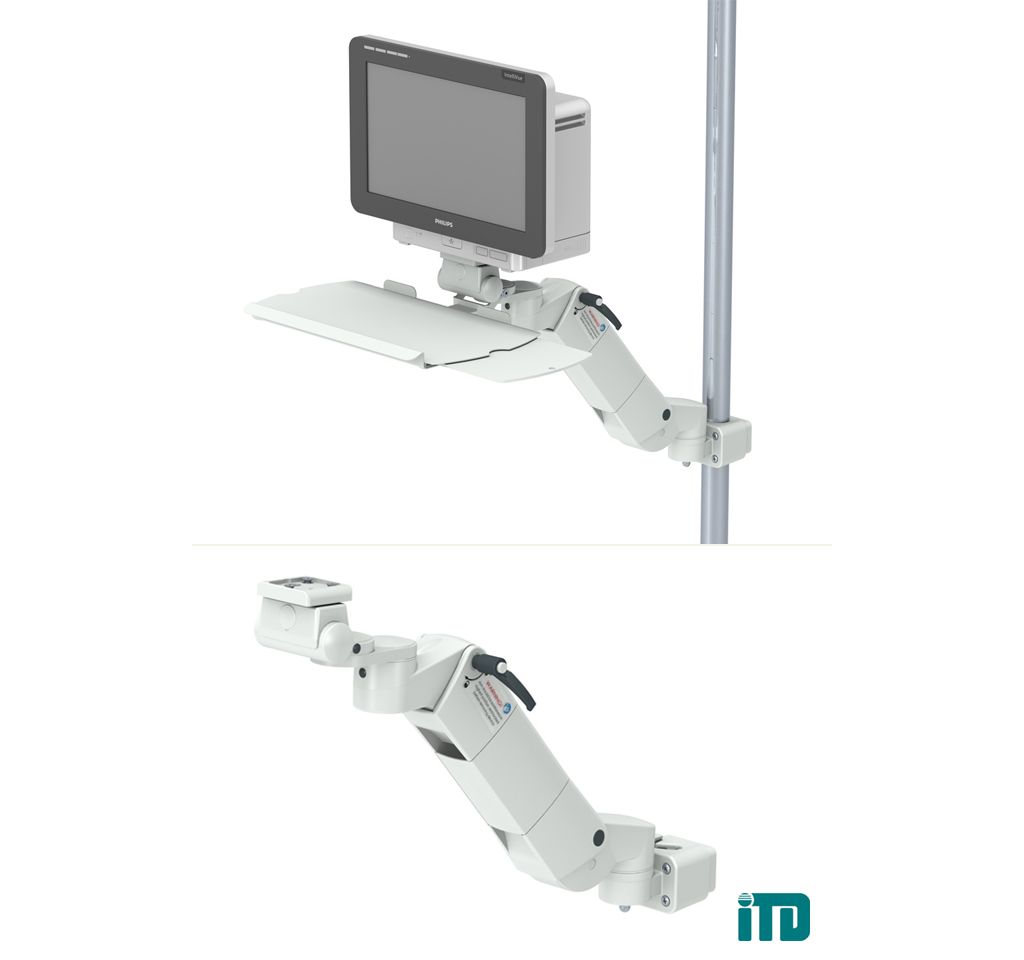

Height adjustable arm on support bar D 25-42mm
ITD part no. HA.2254.903 and ITD part no. HA.2255.903 Kits include:
Adapter for support bar D 25-42mm; arm, length L300mm (for ITD part no. HA.2254.903) and L400mm (for ITD part no. HA.2255.903); tilt and swivel unit with an adapter for Philips IntelliVue MX550.
(Additional information:
DIN EN 60601-1:2006 tested;
minimum load: 8 kg / 17,6 lbs; maximum load: 14 kg / 30,8 lbs;
maximum load tilt and swivel unit: 14 kg / 30,8 lbs; finish, tilt and swivel unit, height adjustable arm and adapter for support bar: RAL 7035 light grey, powder-coated; there is also a possibility to mount a keyboard holder (HA.1024.991))

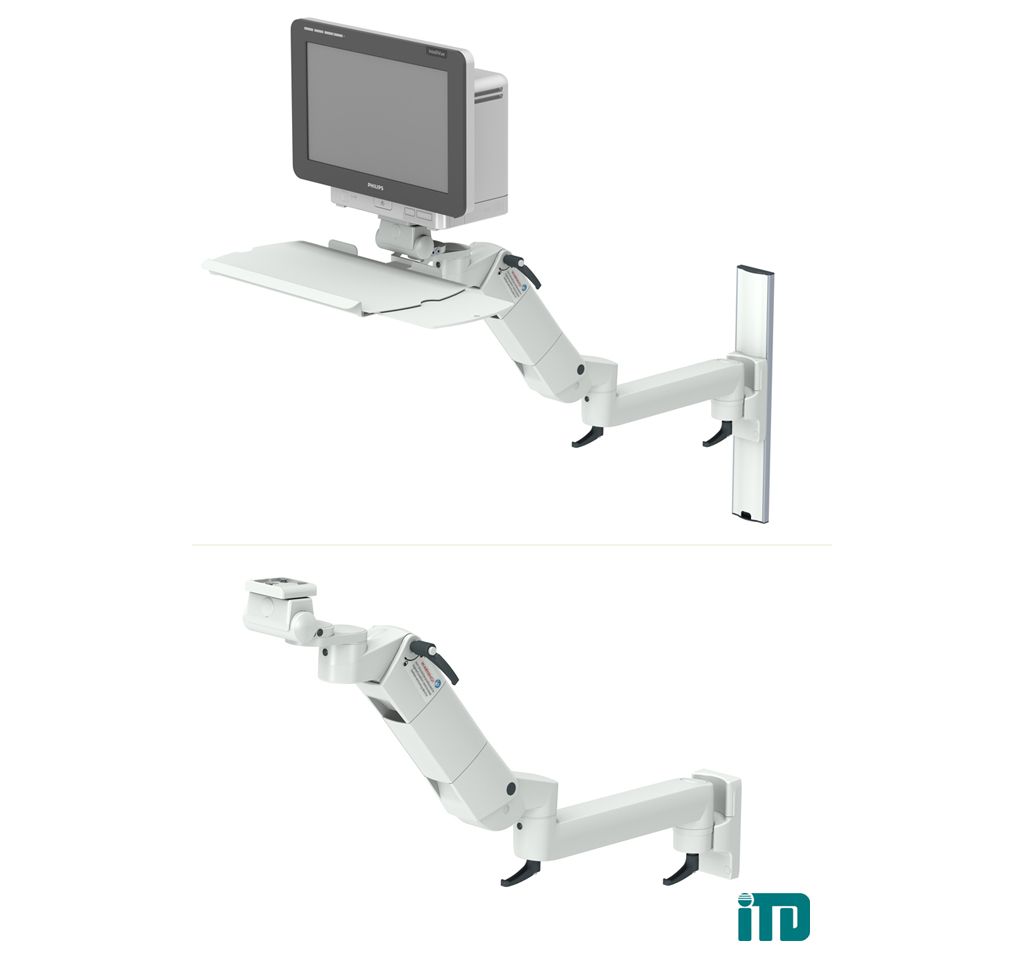

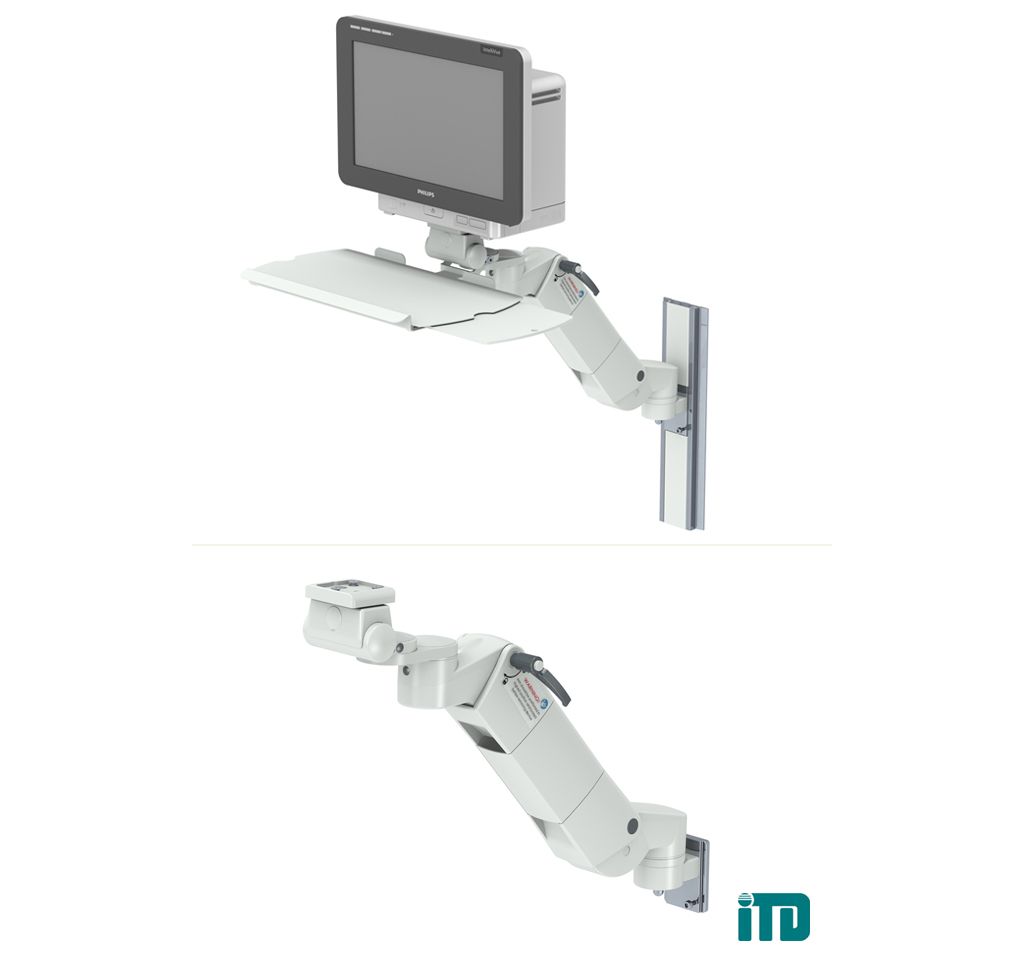

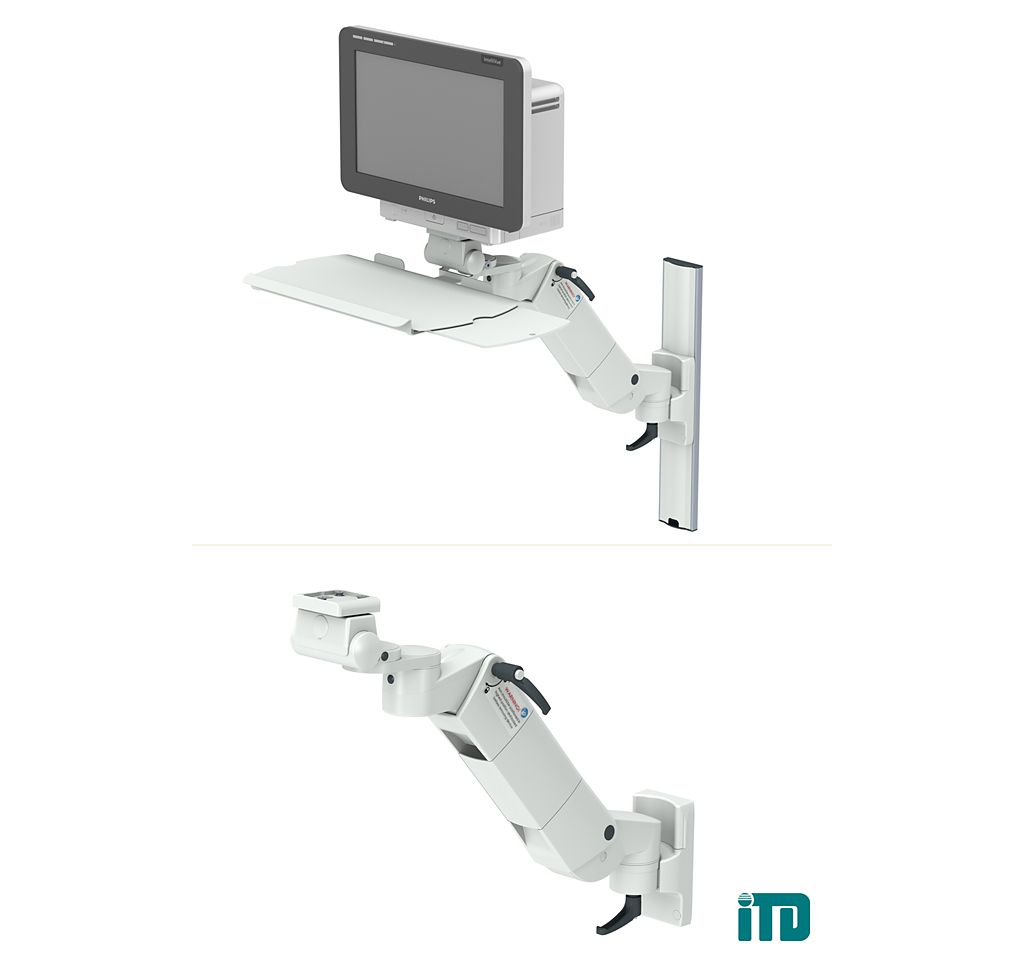

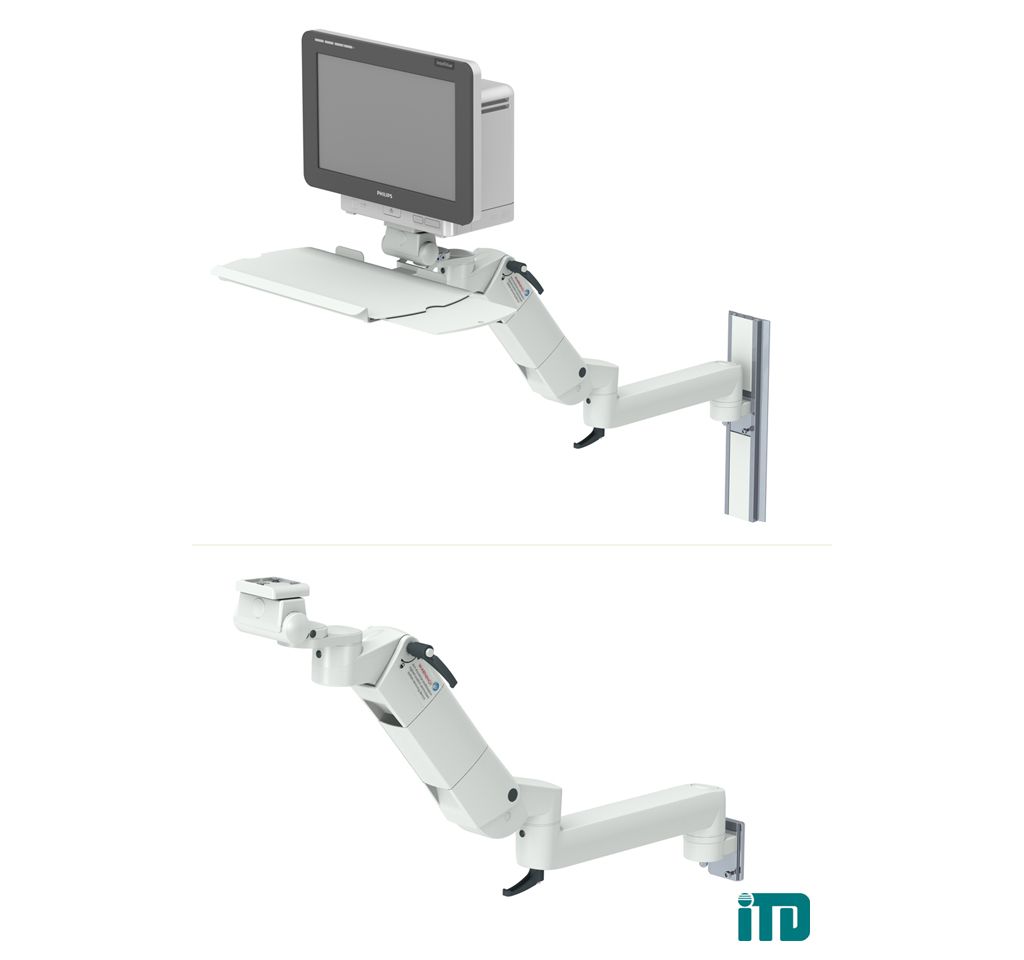

Height adjustable arm with extension on GCX wall channel
ITD part no. HA.2272.903 and ITD part no. HA.2273.903 Kits include:
Adapter for GCX wall channel; arm, length L300mm (for ITD part no. HA.2272.903) and L400mm (for ITD part no. HA.2273.903); extension: length L350mm; tilt and swivel unit with an adapter for Philips IntelliVue MX550.
(Additional information:
DIN EN 60601-1:2006 tested;
minimum load: 8 kg / 17,6 lbs; maximum load: 14 kg / 30,8 lbs;
maximum load tilt and swivel unit: 14 kg / 30,8 lbs; finish, tilt and swivel unit, height adjustable arm and extension: RAL 7035 light grey, powder-coated; finish adapter GCX wall channel: galvanized; there is also a possibility to mount a keyboard holder (HA.1024.991))

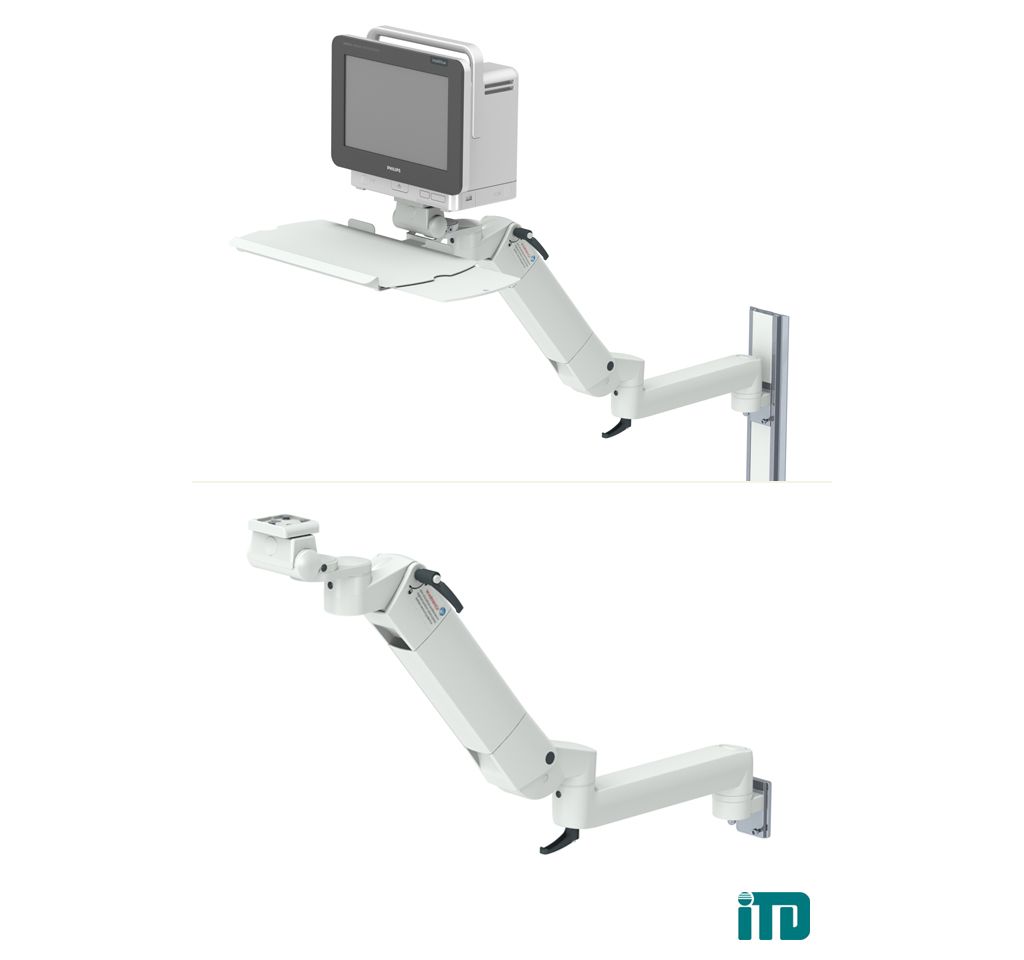

Height adjustable arm with extension on ITD support extrusion
ITD part no. HA.2266.903 and ITD part no. HA.2267.903 Kits include:
Adapter for ITD support extrusion; arm, length L300mm (for ITD part no. HA.2266.903) and L400mm (for ITD part no. HA.2267.903); extension: length L350mm; tilt and swivel unit with an adapter for Philips IntelliVue MX550.
(Additional information:
DIN EN 60601-1:2006 tested;
minimum load: 8 kg / 17,6 lbs;
maximum load: 14 kg / 30,8 lbs;
maximum load tilt and swivel unit: 14 kg / 30,8 lbs; finish, tilt and swivel unit, height adjustable arm, extension and adapter for ITD support extrusion: RAL 7035 light grey, powder-coated; there is also a possibility to mount a keyboard holder (HA.1024.991))
