DuraDiagnost F30
Digital radiography systems
DuraDiagnost F30
Digital radiography systems

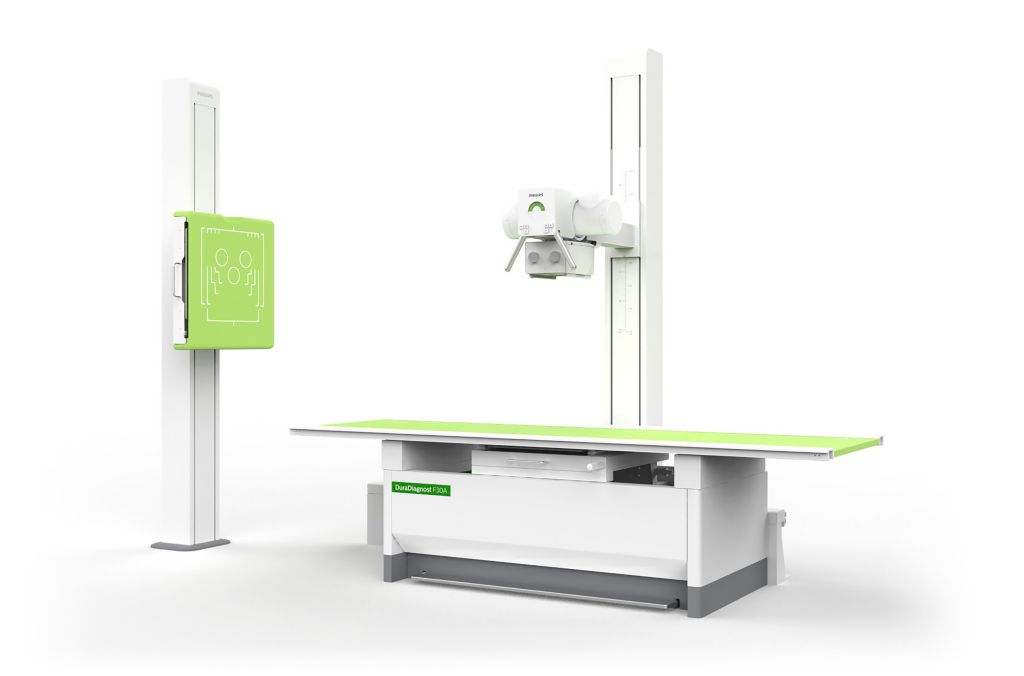

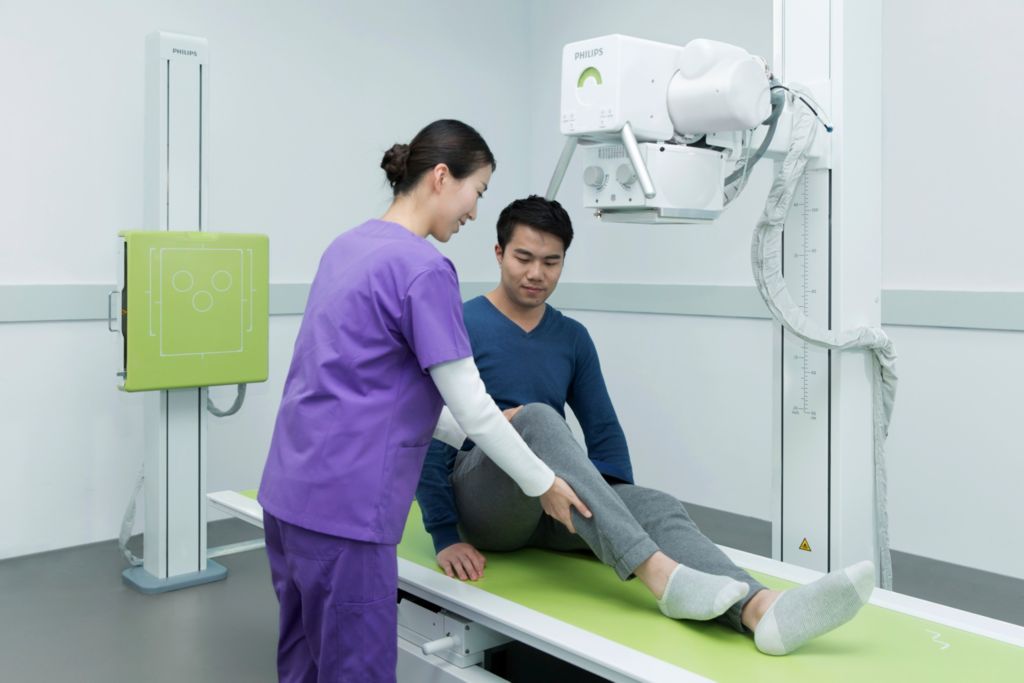

Philips DuraDiagnost F30 is an easy-to-use radiography system and delivers functionality essential for general radiography examinations. Designed for improved workflow and long-lasting durability, DuraDiagnost F30 is a truly smart investment.
Features
Vertical stand

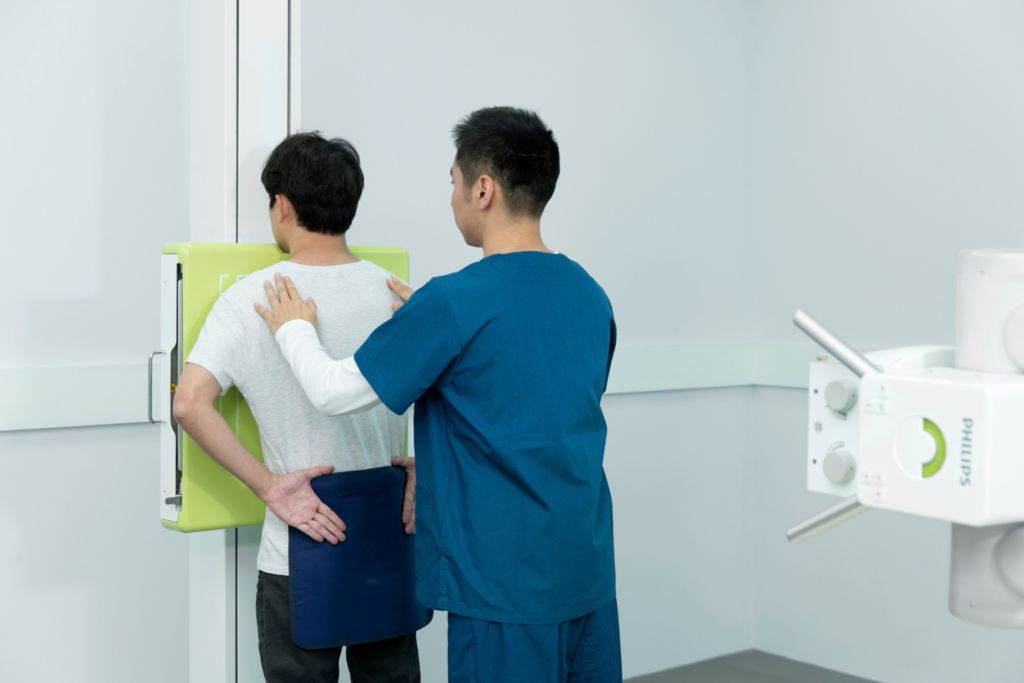

The vertical stand can be adjusted quickly to cover a large range of standing examinations from small children to taller adults.
UNIQUE 2 Image processing
UNIQUE 2 image processing at a glance. Harmonizes contrast and enhances weak details and attains detail accuracy.
X-ray generation

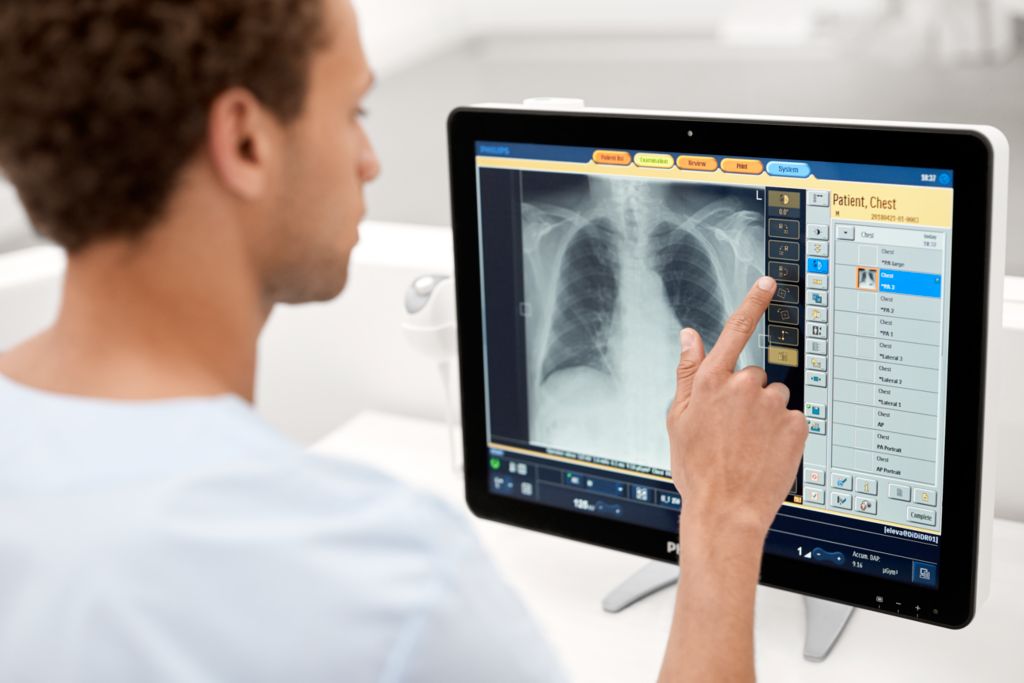

The X-ray tube provides excellent performance over a long lifetime. The Philips generator features modern architecture based on a modular design. It uses high performance components, which can be combined into customer specific solutions. The generator control console is integrated in the Eleva user interface to streamline workflow.
Specifications
- X-ray generation
- Max. tube current (at 70 kV)
- 630 mA
- High-voltage generator
- The converter generator generates high voltage equivalent to DC voltage
- Mains voltage
- 380 - 415 V (+/-10%), 50 Hz or 60 Hz, 3 Phase
- Max. mains resistance at 400 V
- 0.3 Ohm
- Max. mains current at 400 V
- 125A
- Nominal power (IEC)
- 50 kW
- Max. tube voltage
- 150 kV
- Max. tube current (at 70 kV)
- 630 mA
- mAs product
- 0.4 mAs to 500 mAs
- Exposure times
- 5 ms to 4 s
- Collimator
- Type
- Manual, with light field indicator
- Timer switch
- 30 s
- Angle of aperture and rotation
- +45°, -45°
- X-ray tube
- Focal spots
- 0.6/1.2
- Maximum power with focal spot
- 27kW
- Anode angle
- 12°
- Maximum tube voltage
- 150 kV
- Anode heat storage capacity
- 210kJ(300kHU)
- Assembly heat capacity
- 900 kJ (1250kHU)
- Continuous anode input power
- 120 W (169 HU/s)
- Anode speed
- Minimum 9700/min
- Wireless portable detector
- Type
- Digital wireless portable flat detector
- Scintillator
- Cesium Iodide (CsI)
- Image matrix size
- 2,156 x 2,653 pixels
- Detector size
- 35 cm x 43 cm (approx. 14" x 17")
- Active Area
- 34.5 cm x 42.5 cm (approx. 13.6" x 16.7")
- Pixel size
- 160 μm
- Active pixel area
- 2456 x 3052 pixels
- Detector pixels
- 5.7 Megapixels (calculated from matrix size)
- A/D conversion (bits)
- 16 bits
- Weight (incl. battery)
- 3.1 kg (6.8 lbs)
- Eleva workspot computer
- Hard disk
- 480 GB SSD total
- RAM storage capacity
- 16 GB
Related products
- With digital radiography systems that reflect a sensible marriage of function and fiscal responsibility, your patients benefit from fast and smooth examinations. Your facility benefits from a reputation for quality, by offering reliable imaging services based on Philips proven technology.
- The MobileDiagnost wDR mobile radiography system offers outstanding workflow, brilliant image quality and the full efficiency of Philips’ premium digital radiography all packed into a simple, secure and flexible mobile X-ray system.
- Boost your diagnostic confidence. This quality based ceiling mounted digital X-ray system with a fixed or wireless detector, motorized auto-tracking, a fully digital workflow, and UNIQUE 2 image processing, delivers diagnostic quality images for fast, efficient exams.
Disclaimer
DuraDiagnost F30 is not for sale in North America
