Radiography 5000 C — DigitalDiagnost C50

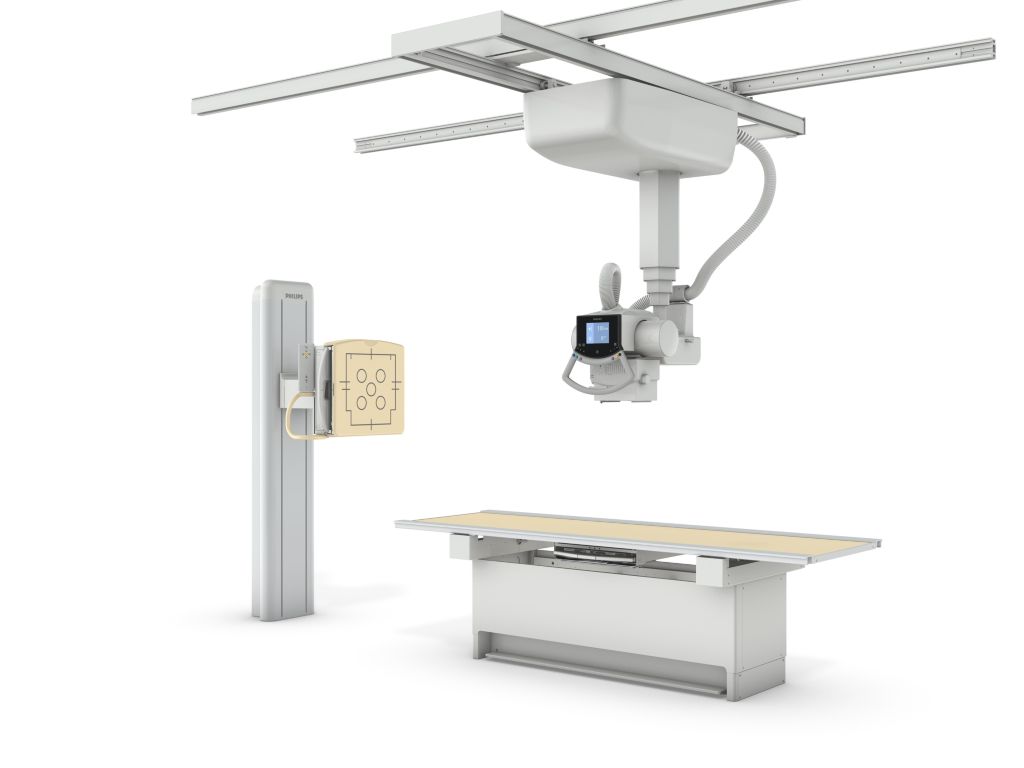

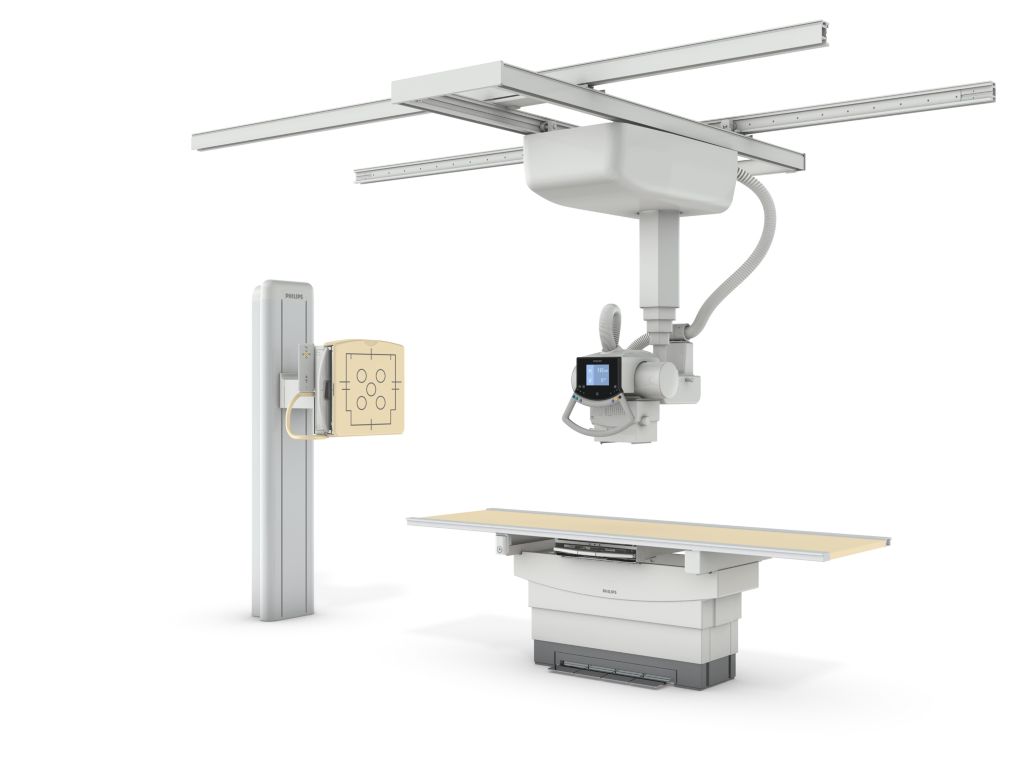

Ceiling-mounted digital radiography solution
Radiography 5000 C — DigitalDiagnost C50
Ceiling-mounted digital radiography solution
Boost your diagnostic confidence.
This quality based ceiling mounted digital X-ray system with a fixed or wireless detector, motorized auto-tracking, a fully digital workflow, and UNIQUE 2 image processing, delivers diagnostic quality images for fast, efficient exams.
Features
Ease of operation

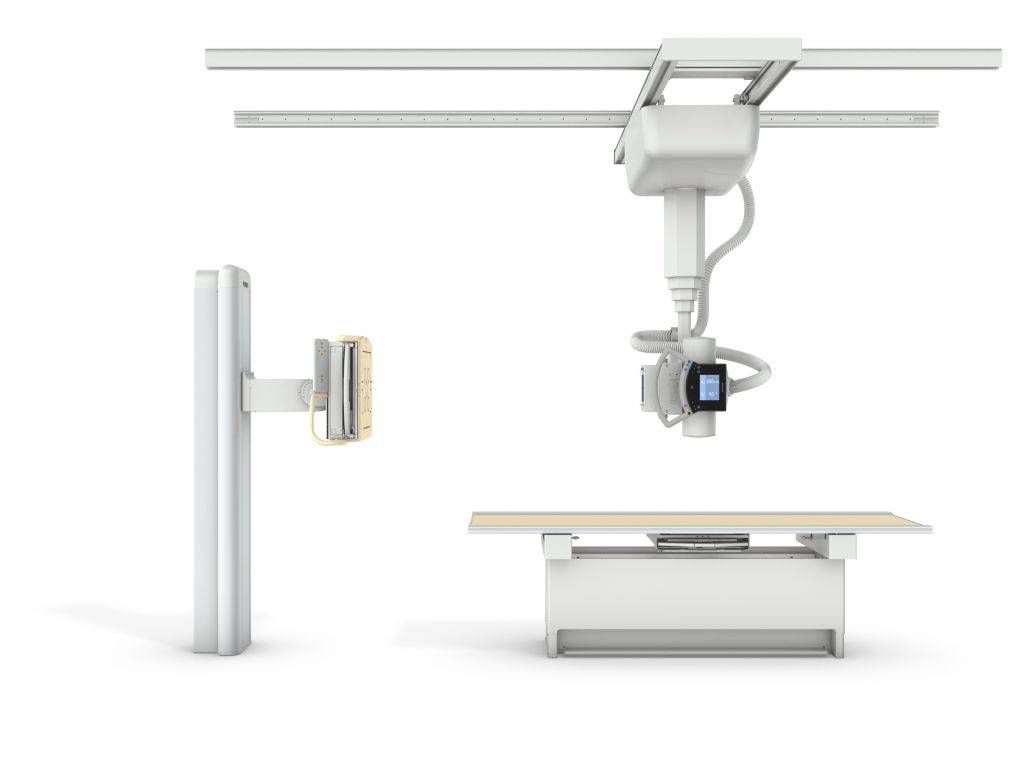

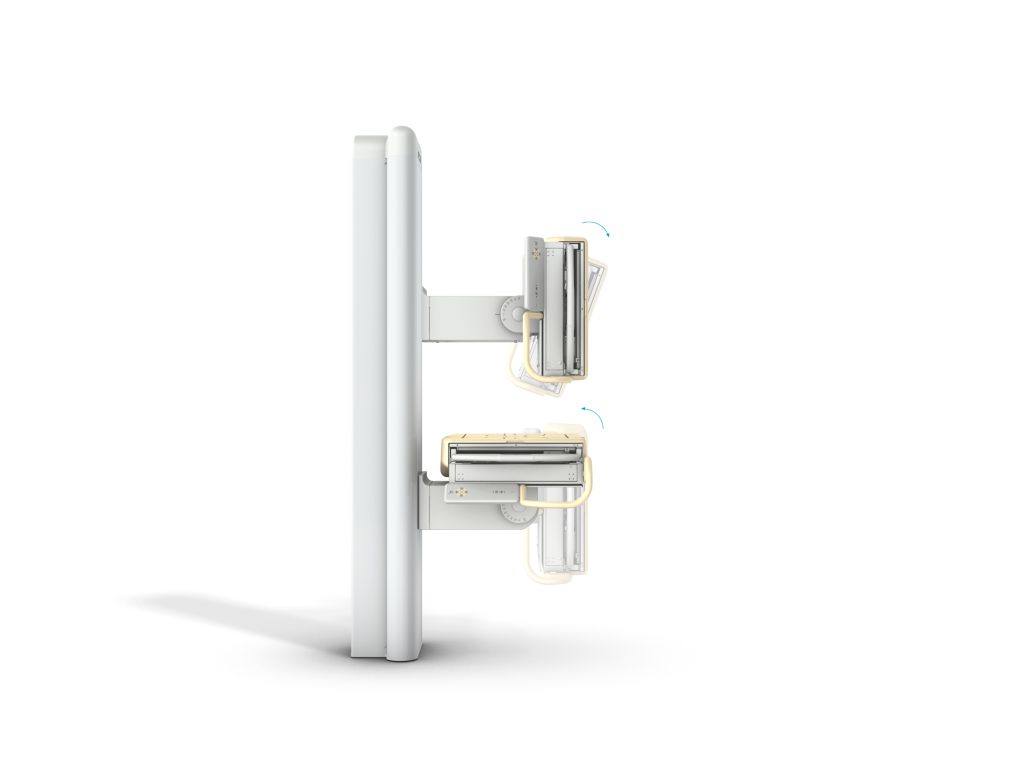

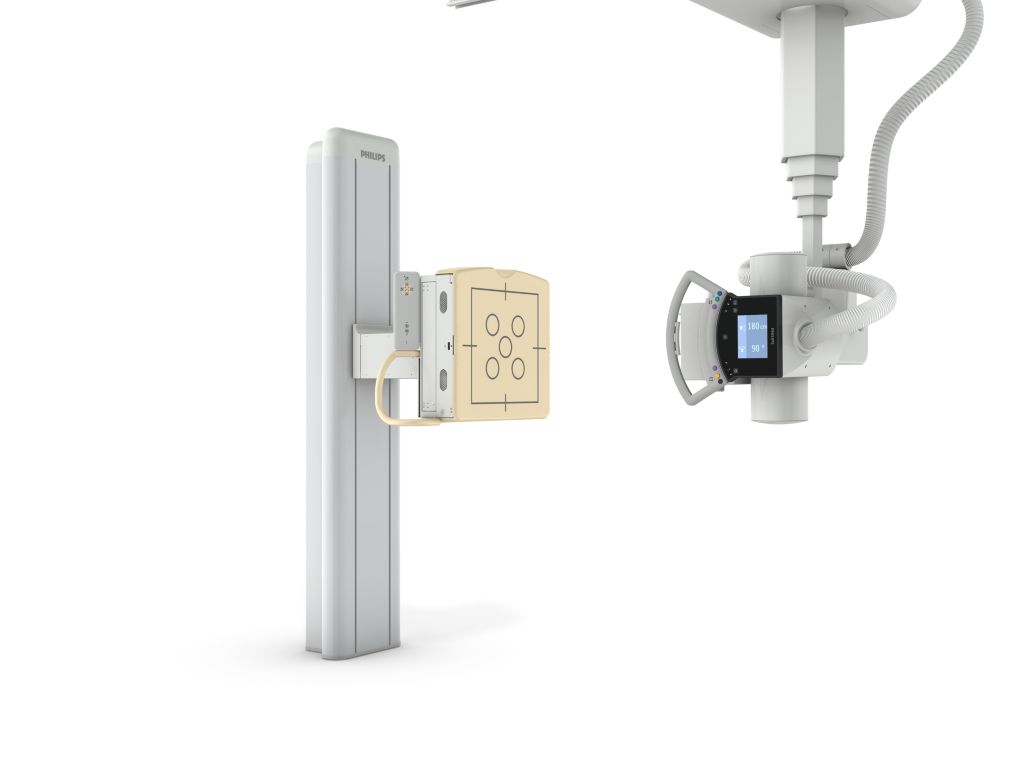

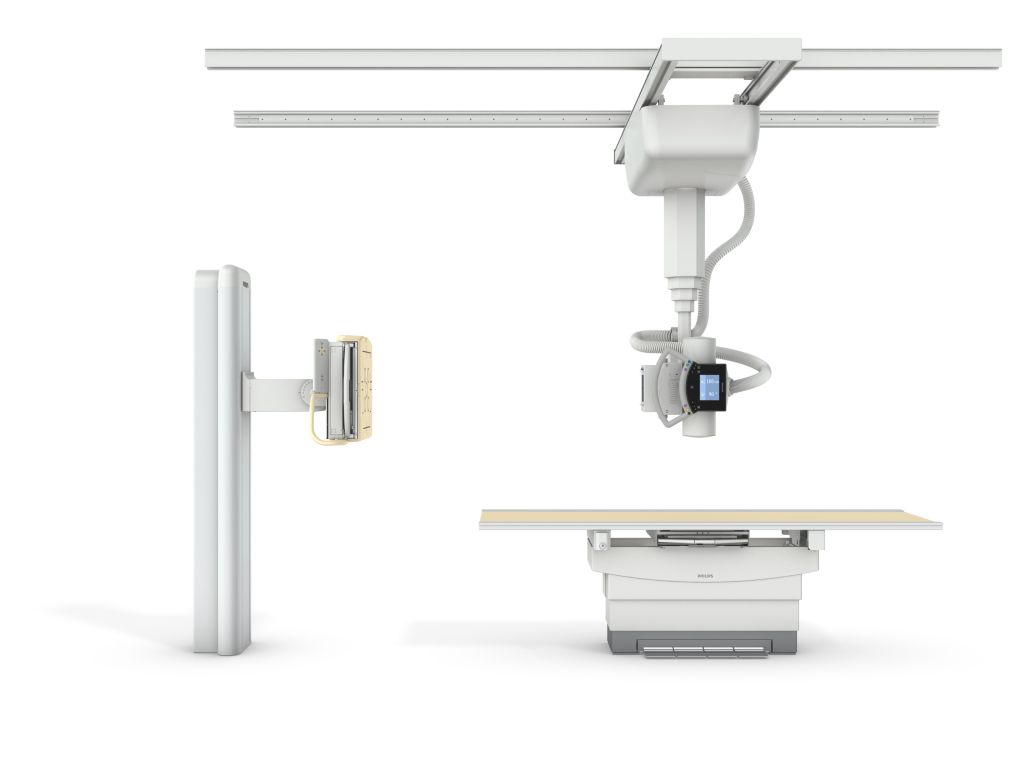

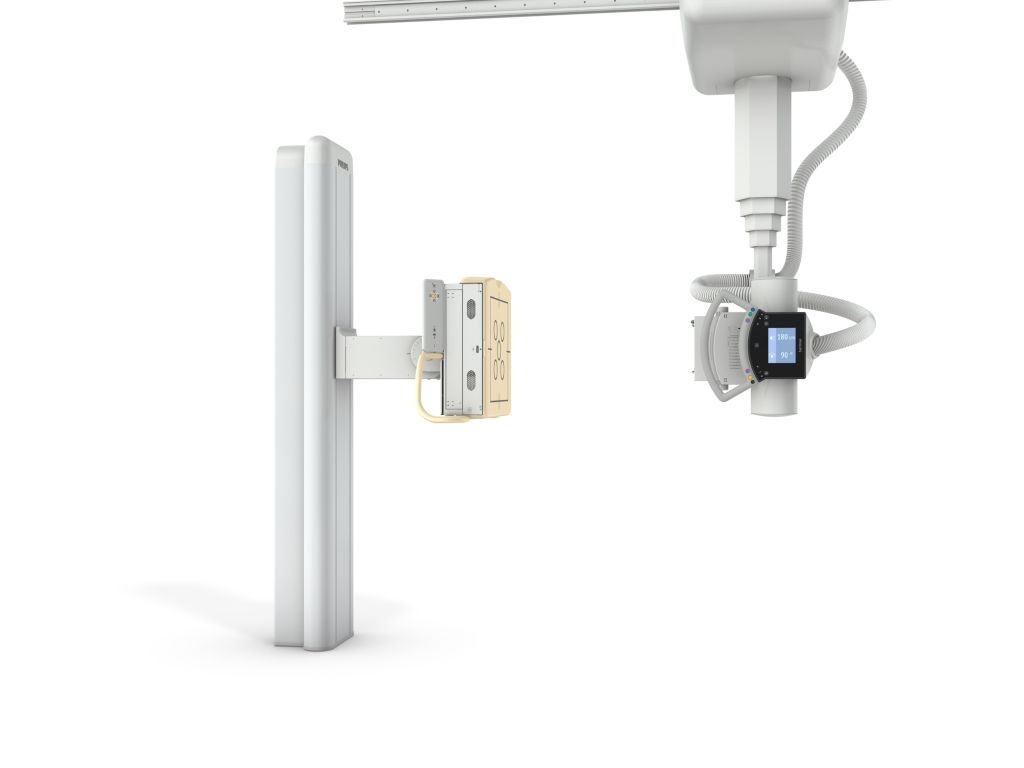

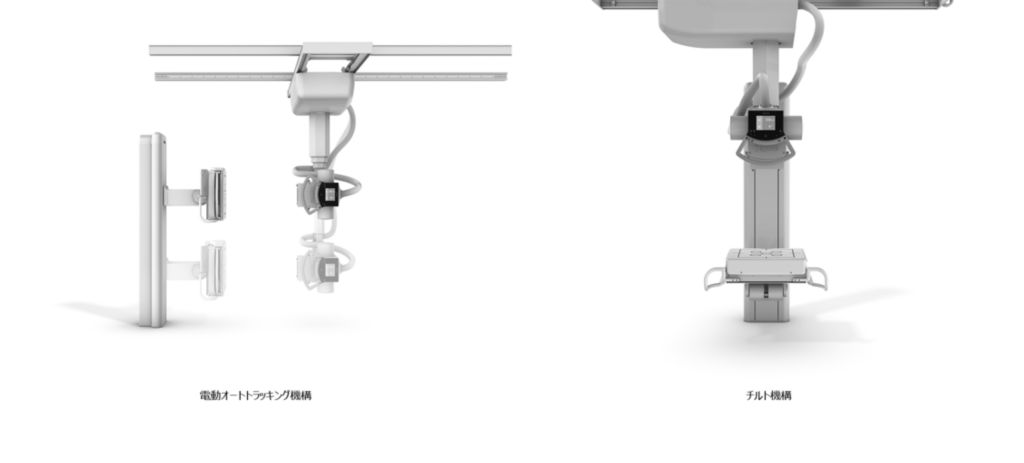

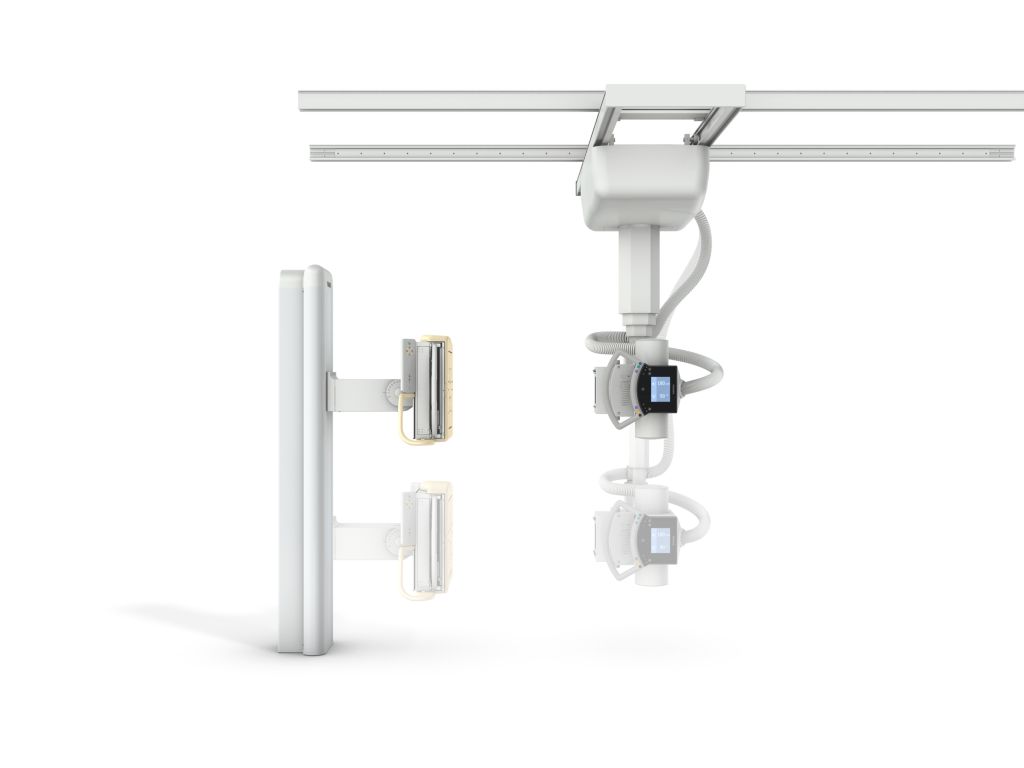

The ceiling suspended X-ray tube moves smoothly and manually into position. The vertical stand detector slides up/down and tilts a full 900 for easy horizontal exams. With vertical auto-tracking the motorized tube automatically follows the detector.
Integrated dose management aids
You can easily check X-ray dose and perform accurate dose reporting with the built-in Dose Area Product (DAP) meter1. The manual collimator helps capture the area of interest only and avoids unnecessary radiation exposure to the patient. Optional grids enhance the contrast and quality of the image.
Extended clinical capability
DigitalDiagnost C50 offers the versatility necessary to address a broad range of clinical applications in a cost-effective manner. Smooth operation, the latest generation CSI wireless/fixed detectors, and cutting-edge post-processing features help assure comprehensive performance.
Specifications
- Collimator
- Type
- Manual, with light field indicator
- Timer switch
- 30 s (should be configurable)
- Angle of aperture and rotation
- ±45°
- X-ray generation
- Generator
- 50 kW
- 65 kW
- High-voltage generator
- The converter generator generates high voltage equivalent to DC voltage
- Mains voltage
- 380V/400 V / 480 V (±10%); 50 Hz or 60 Hz, 3-phase
- Max. mains resistance at 400 V
- 0.3 Ohm
- 0.2 Ohm
- Max. mains current at 400 V
- 112A
- 134A
- Nominal power (IEC)
- 50 kW
- 65 kW
- Max. tube voltage
- 150 kV
- 150 kV
- Max. tube current (at 70 kV)
- 630 mA
- 928 mA
- mAs product
- 0.4 mAs to 850 mAs
- 0.4 mAs to 850 mAs
- Exposure times
- 1ms to 4s
- 1ms to 4s
- Tube High power X-ray tube
- Two focal spots
- RO1750 - 0.6 and 1.2
- SRO 33100 - 0.6 and 1.2
- Maximum power with focal spot 0.6
- RO1750 - 21 kW
- 3SRO 33100 - 33 kW
- Maximum power with focal spot 1.2
- RO1750 - 60 kW
- SRO 33100 - 100 kW
- Anode angle
- RO1750 - 13°
- SRO 33100 - 13°
- Maximum tube voltage
- RO1750 - 150 kV
- SRO 33100 - 150 kV
- Anode heat storage capacity
- RO1750 - 220 kJ (300 kHU)
- SRO 33100 - 220 kJ (300 kHU)
- Assembly heat capacity
- RO1750 - 1500 kJ (2202.4 kHU)
- SRO 33100 - 1500 kJ (2202.4 kHU)
- Continuous anode input power
- RO1750 - 200 W
- SRO 33100 - 200 W
- Minimum anode speed
- RO1750 - 3000-3600 revolutions/minute
- SRO 33100 - 9000-10800 revolutions/minute
- Detectors, fixed
- Weight
- 2.1 kg
- Pixel size
- 148 μm
- Type
- Digital flat Cesium Iodide (CsI) detector
- Image matrix size
- 2,840 pixels x 2,874 pixels
- Detector pixels
- 8.2 Megapixel
- Detector size
- 43 cm x 43 cm (17"x 17")
- Image resolution
- up to 3.4 Lp/mm
- Active area
- 42 cm x 42.5 cm (16.5" x 16.7")
- Ceiling Suspension CS
- Column
- 110 cm (44”)
- Ceiling height at source image distance
- 2.75 m to 3 m (9' to 10’ 5.9") when table height is 70 cm (27.6") and above
- Movements
- Travel range Z axis(Vertical)
- 150 cm (59.1") Maximum
- Travel range X axis(Longitudinal)
- 305/405 cm (120.1"/159.4")
- Travel range Y axis(Lateral)
- 180 cm (70.9")
- Eleva workspot computer
- RAM storage capacity
- 16 GB
- Hard disk
- 480 GB SSD total
- Wireless portable detector
- Type
- Digital wireless flat detector
- Scintillator
- Cesium Iodide (CsI)
- Image matrix size
- 2,156 x 2,653 pixels
- Detector size
- 35 cm x 43 cm (approx 14" x 17")
- Pixel size
- 160 μm
- Active Area
- 34.5 cm x 42.5 cm (13.6" x 16.7")
- Active pixel area
- 2,156 x 2,653 pixels
- Detector pixels
- 5.7 Megapixels
- A/D conversion (bits)
- 16 bits
- Weight (incl. battery)
- 3.1 kg (6.8 lb)
